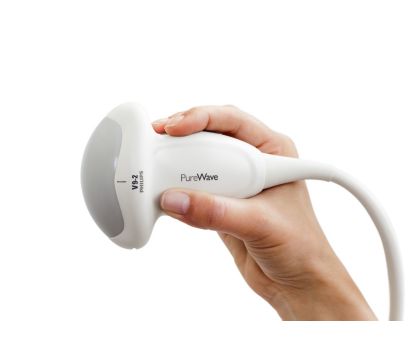

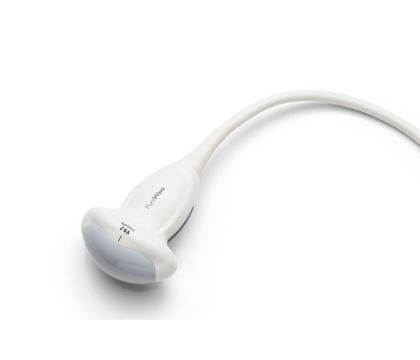

V9-2 Transducer
Curved mechanical volume array transducer
V9-2 Transducer
Curved mechanical volume array transducer
The lightweight, ergonomic design of Philips V9-2 transducer allows for exceptional fetal imaging and visualization across a wide variety of patient types. This transducer offers advanced 3D/4D imaging support, including TrueVue, MPR Touch and FlexVue capabilities. In additon, MicroFlow Imaging capabilities helps overcome many of the technical barriers associated with conventional methods to aid in detection of small vessel blood flow with high resolution and minimal artifact.
PureWave technology
9 - 2 MHz frequency range
Curved mechanical volume array type
Clinical image gallery
- Expanded view of the fetal spine using the V9-2 transducer and TrueVue

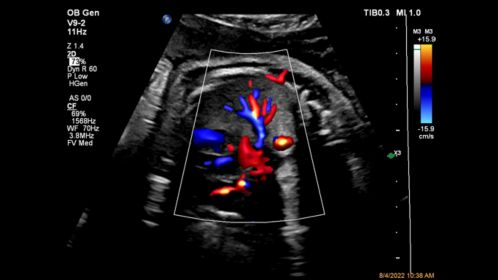

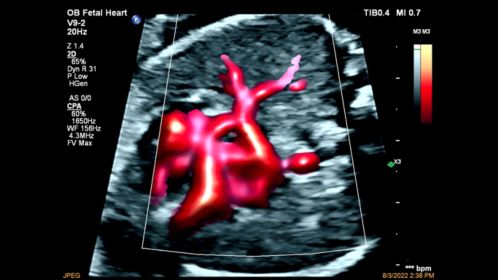

- V9-2 Fetal Heart CPA with Flow Viewer

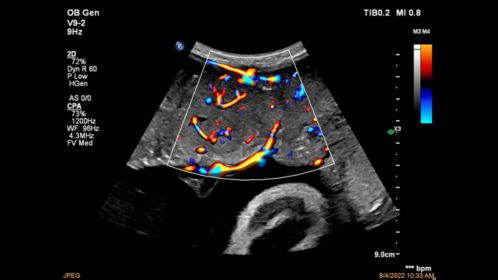

- Placenta CPA with Flow Viewer
- V9-2 Fetal Lung Perfusion with Flow Viewer
Specifications
- Specifications
- Technology
- PureWave
- Number of elements
- 192
- Frequency range
- 9 - 2 MHz
- Array Type
- Curved mechanical volume
- Aperture
- 52.61 mm
- Field of view
- 100°
- Volume of field of view
- 100° x 101°
- Applications
- Obstetrical and gynecological
- Biopsy capable
- Yes
- Image Fusion Navigation capable
- No
Documentation
Disclaimer
Available in select countries. Please consult your Philips representative for further details.
*Based on a sample size of 26 users
